Vewlix F
| AKA: | |||
|---|---|---|---|
| Related Models: | Vewlix C, Vewlix L & Vewlix VS | ||
| Type: | Sitdown | Country: | Japan |
| Company: | Taito | Year: | 2007 |
| Dimensions: | 800 x 800 x 1575 mm (including topper 1890mm) | ||
| Weight: | 125 kg | ||
| Wiring Default: | JVS | ||
| Current: | 100VAC (50/60Hz) | Power: | 290W |
| Monitor: | 32in LCD, 1080p | ||
| Rotatable: | Yes (no rotate mechanism) | ||

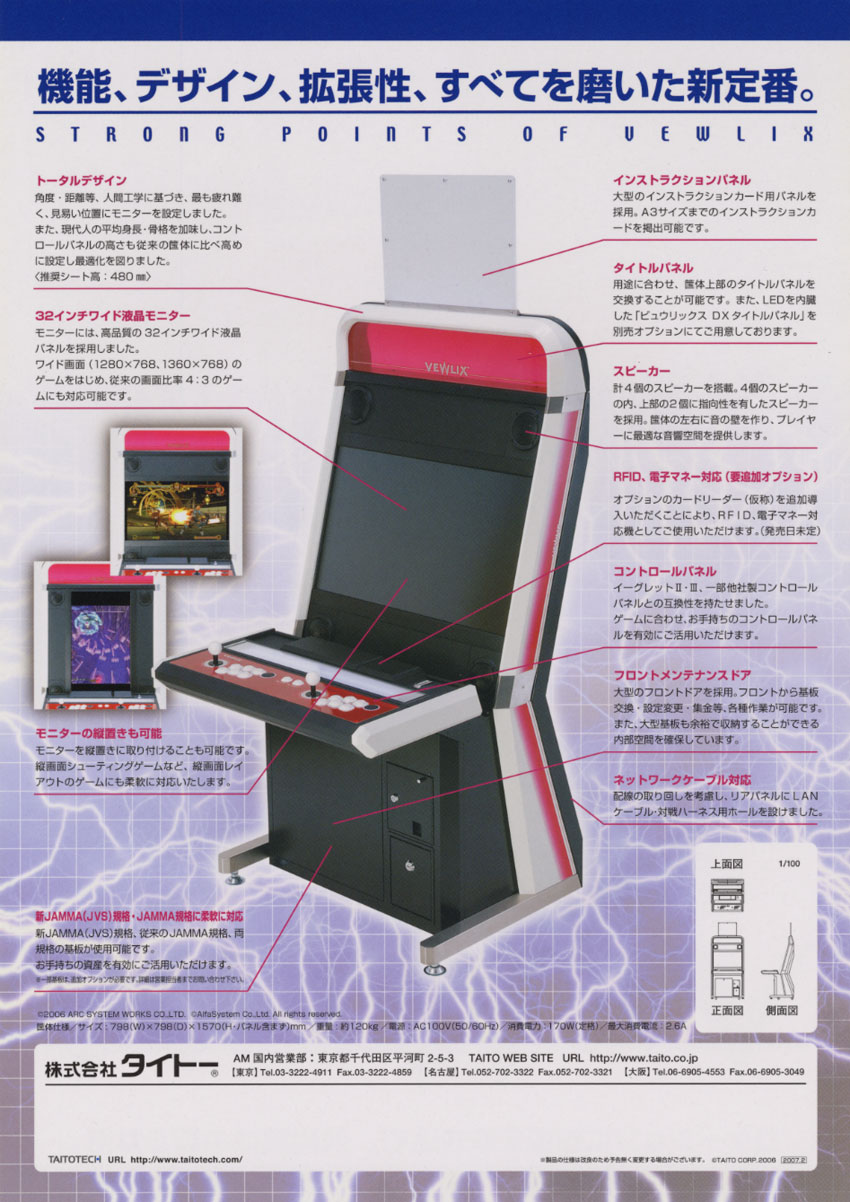

| Downloads: | Flyer Flyer2 Flyer3 Poster TaitoVewlixFManual | ||
| Artwork: | |||
Description:
In 2007 Taito introduced the Vewlix L and F models. This was a follow up on the release of the Taito Type X system to optimally use all of the options on this hardware. Traditionally up to now all arcade machines and candy cabs had a 4:3 ratio but with the Vewlix and Taito Type X system game with a 16:9 ratio were now also possible including HD resolution.The Vewlix model L is the starter Vewlix while the F model is the premium model with additional features such as:
-Converter to JAMMA standard (I / O Board)

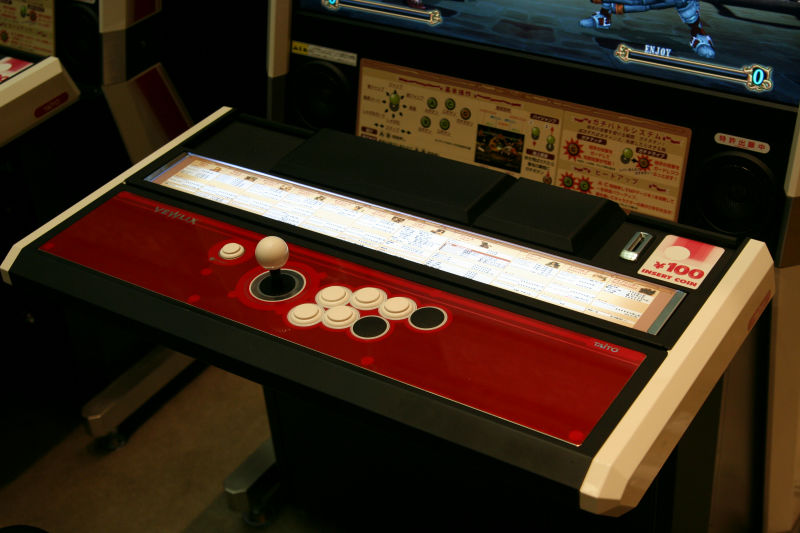

-Backlighting of the panel instructions
-Backlight marquee
-Power button on the front and back (while with the model L the button is inside)
-Extended power cord to 3 meters (instead of 2 meters for the model L)

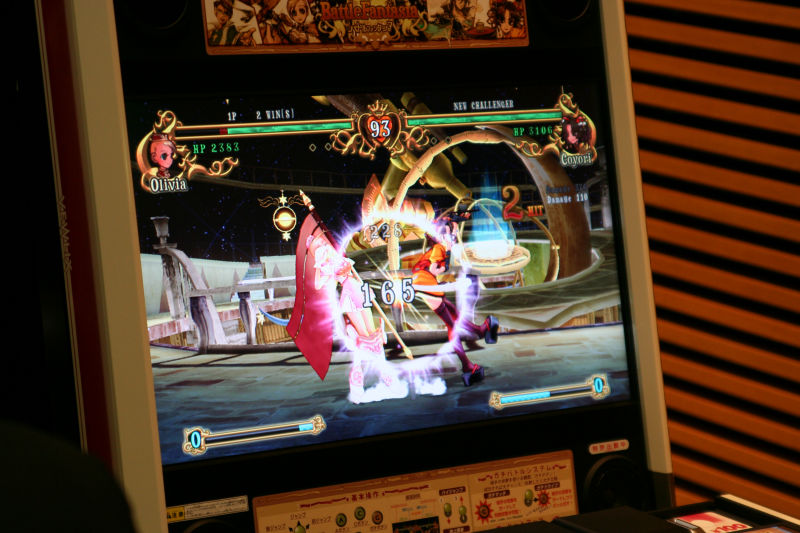

-Sanwa T32H075 (KA) LCD screen for maximum 1080p resolution (compared to 720p for the model L)
Also the color of the model F and model L are different. Where the model F is black with red and white accents the model L has more dark blue accents and less white.
